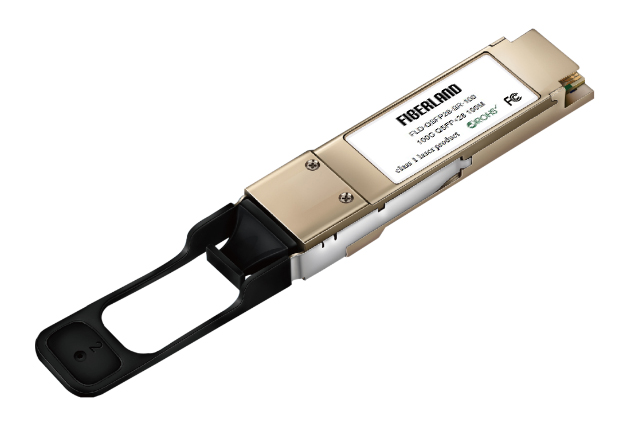

100G QSFP28 Transceiver Module
Product Details
  • Vendor Name
    Fiberland
    Form Type
    QSFP28
  • Data Rate
    100Gbps
    Wavelength
    850/1310NM
  • Reach
    100M~80KM
    Optical Interface
    MPO/LC
  • Media Type
    MM/SM
    DDM Support
    YES
  • Commercial Temp.
    0~70℃
    Industrial Temp.
    -40~85℃
  • Compatible Brands
    Cisco,HP,Huawei,etc...
    Certificates
    CE,FCC,ROHS,REACH
  • HS Code
    8517706000
    Warranty
    3 Years
Fiberland 100G QSFP28 transciever Support line rates from 103.125 Gbps to 111.81 Gbp,Integrated LAN WDM TOSA / ROSA for up to 40 km reach over SMF.Digital Diagnostics Monitoring Interface.Compliant with QSFP28 MSA with LC connector,Duplex LC optical receptacle

FIBERLAND 100G QSFP28 optical Transceiver integrates receiver and transmitter path on one module. In the transmit side, four lanes of serial data streams are recovered, retimed, and passed to four laser drivers. The laser drivers control 4- Distributed Feedback Laser (DFB) with center wavelength of 1296 nm, 1300nm, 1305nm and 1309 nm. The optical signals are multiplexed to a single –mode fiber through an industry standard LC connector. In the receive side, the four lanes of optical data streams are optically de-multiplexed by the integrated optical de-multiplexer. Each data stream is recovered by a PIN photo-detector and trans-impedance amplifier, retimed. This module features a hot-pluggable electrical interface, low power consumption and MDIO management interface.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA) and compliant to IEEE 802.3bm.

Currently,fiberland is able to offer 100G QSFP28 SR4, 100G QSFP28 LR4, 100G QSFP28 ER4 LITE 30KM,100G QSFP28 ZR4,100G QSFP28 SRBD, 100G QSFP28 ER4 40KM.100G QSFP28 PSM4,100G QSFP28 DAC,100G QSFP28 AOC and etc.What’s more,all the QSFP28 is compatible with branded switches.Cisco,hp,huawei and other 150 brands in the market.
Quality Commitment

Fiberland Technology Co.,Ltd 's aim is to provide you high quality products.We are doing products aging for standard 8 hours and 100% funtion tested before shipping. Besides,Fiberland products are with quality system verifications,such as CE,FCC,ROHS as well as REACH.We record the ID (Serial Number) of products with our ERP system in order to track our products easily.


More Options
  • Part No.
    Product Type
    Rate
    Media Type
    Wavelength
    Reach
    Connector
    Commercial Temp.
    Industrial Temp.
    Optional
  • FLD-QSFP28-SR4
    QSFP28
    100G
    MM
    850NM
    100M
    MPO
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-SR4e
    QSFP28
    100G
    MM
    850NM
    300M
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-LR4e
    QSFP28
    100G
    SM
    1310NM
    2KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-LR4-10
    QSFP28
    100G
    SM
    1310NM
    10KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-ER4
    QSFP28
    100G
    SM
    1310NM
    40KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-CWDM4
    QSFP28
    100G
    SM
    1310NM
    2KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-SRBD
    QSFP28
    40G/100G
    MM
    850/900NM
    100M
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-PSM4
    QSFP28
    100G
    SM
    1310NM
    2KM
    MPO
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-ZR4
    QSFP28
    100G
    SM
    1310NM
    80KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-LR4-20
    QSFP28
    100G
    SM
    1310NM
    20KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-OLR4-10
    QSFP28
    100G/112G
    SM
    1310NM
    10KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-OLR4-20
    QSFP28
    100G/112G
    SM
    1310NM
    20KM
    LC
    0~70℃
    -40~85℃
    DDM
  • FLD-QSFP28-OLR4-40
    QSFP28
    100G/112G
    SM
    1310NM
    40KM
    LC
    0~70℃
    -40~85℃
    DDM
