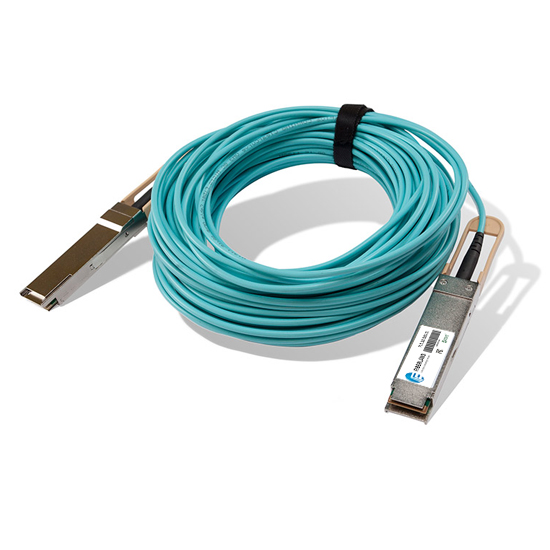

40G QSFP+ to QSFP+ AOC
- Full duplex 4 channel 850nm parallel active optical cable
- Up to 11.1Gbps Data rate per channel
- Maximum link length of 100m links on OM3 multimode fiber
- High Reliability 850nm VCSEL technology
- Electrically hot-pluggable
- Case operating temperature range:0°C to 70°C
- Power dissipation < 1.5 W per cable end
- Compliant with CE,FCC,Rohs,REACH
Product Details
-
Vendor Name
Fiberland
Form Type
40G QSFP+ AOC
-
Data Rate
40Gbps
Wavelength
850NM
-
Reach
1~100M
Optical Interface
N/A
-
Media Type
MM
DDM Support
YES
-
Commercial Temp.
0~70℃
Industrial Temp.
-40~85℃
-
Compatible Brands
Cisco,HP,Huawei,etc...
Certificates
CE,FCC,ROHS,REACH
-
HS Code
8517706000
Warranty
3 Years
With the developing of datacenter and 5G technology,AOC cable (Active optical cable) is becoming more and more popular in the application of short data transmission.Fiberland is able to offer our customers various of AOCs including SFP+ TO SFP+ AOC, QSFP+ TO QSFP+ AOC,SFP28 TO SFP28 AOC as well as QSFP28 to QSFP28 AOC.Fiberland also have 40G Breakout AOC (40G QSFP+ TO 4 SFP+ AOC)and 100G breakout AOC(100G QSFP28 to 4 SFP28 AOC) in our product line.Different length of AOC cable meets different use.The maximum cable length can be 100m.
All the AOC cable is able to compatible with over 150 brands in the market.Most commonly seen part number for Arista will be AOC-Q-Q-40G-1M,Brocade 40G-QSFP-QSFP-AOC-1001.Cisco QSFP-4X10G-AOC，QSFP-H40G-AOC，QSFP-4X10G-AC，QSFP-4SFP10G-CU and etc. HP Q9S66A,721070-B21,721076-B21,720205-B21.
Please feel free to contact our sales department for sample testing.
Quality Commitment
Fiberland Technology Co.,Ltd 's aim is to provide you high quality products.We are doing products aging for standard 8 hours and 100% funtion tested before shipping. Besides,Fiberland products are with quality system verifications,such as CE,FCC,ROHS as well as REACH.We record the ID (Serial Number) of products with our ERP system in order to track our products easily.
More Options
-
Part No.
Product Type
Rate
Media Type
Wavelength
Reach
Connector
Commercial Temp.
Industrial Temp.
Optional
-
FLD-40GA-QS2QS-1
QSFP+ AOC
40G
MM
850NM
1M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-2
QSFP+ AOC
40G
MM
850NM
2M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-3
QSFP+ AOC
40G
MM
850NM
3M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-5
QSFP+ AOC
40G
MM
850NM
5M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-7
QSFP+ AOC
40G
MM
850NM
7M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-10
QSFP+ AOC
40G
MM
850NM
10M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-20
QSFP+ AOC
40G
MM
850NM
20M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-30
QSFP+ AOC
40G
MM
850NM
30M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-50
QSFP+ AOC
40G
MM
850NM
50M
N/A
0~70℃
-40~85℃
N/A
-
FLD-40GA-QS2QS-100
QSFP+ AOC
40G
MM
850NM
100M
N/A
0~70℃
-40~85℃
N/A
Contact Us Now For More In Details !
